IP65 42VDC DN300mm Steam Insertion Vortex Flow Meter

Name: IP65 42VDC DN300mm Steam Insertion Vortex Flow Meter
Brand: HCATM
Price: 1 USD

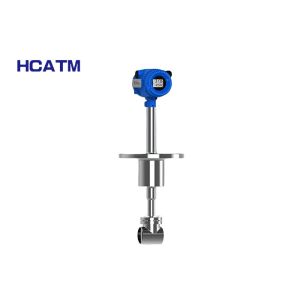

Quality IP65 42VDC DN300mm Steam Insertion Vortex Flow Meter for sale

Brand Name : HCATM

Model Number : GMF603-C

Certification : CE，RoHS

Place of Origin : Xi'an

MOQ : 1

Payment Terms : D/A, D/P, L/C, Western Union, T/T, MoneyGram，Paypal

Supply Ability : 100000 pieces per month

Delivery Time : 5-7 days

Packaging Details : Packing in wooden cases or cartons

Medium : Gas/Steam/Liquid

Nominal Diameter : DN15～300mm

Repetitive : ±0.3%RD

Power : 13.5～42VDC

Output : 4~20mA;0~5Khz;0~10Khz;RS-485;Bluetooth

Medium Temperature : -40 ~ 150℃ (normal temperature type) -40 ~ 250℃ (medium temperature)

Pressure : 1.6Mpa (General) 2.5Mpa / 4.0Mpa (Optional)

Environment Temperature : -40～85℃

Environmental Humidity : 5~100%RH

Protection Grade : IEC IP65/IP67

Explosion-proof Grade : ExdⅡCT3/FM/CSA/ATEX

Material : Body: 304 or 316L Vortex street sensor: 316L Converter case: aluminum

Contact Now

GMF603-C 4~20mA ±0.3% RD DN200-DN1000mm(8~40inches) gas liquid steam insertion vortex flow meter

Principle

The vortex flowmeter is a new type of flow measuring instrument made according to the principle of "Kamen vortex".

Features

■Applicable to any shape pipe with large diameter and known cross-sectional area
■The range ratio exceeds the traditional plug-in vortex street
■Double probe design
■Fully isolated electrical structure completely filters out external interference
■IP65 housing
■Modbus and HART@4~20mA bus interface

Application

1.Measurement of compressed air consumption
2.Steam mass flow and consumption measurement
3.Natural gas standard flow and consumption measurement
4.Monitoring of coal mine gas drainage flow
5.Fluid temperature and pressure measurement

Technical Parameters

Model	GMF603-C
Medium	Gas/steam/liquid
Nominal Caliber	200 to 1000mm (8 to 40 inches)
Flow Range	Gas/steam: 2~70m/s Liquid: 0.3m/s to 7m/s
Accuracy	Liquid: ±2.0% FS; gas or steam: ±2.0% FS
Repeatability	±0.3% RD
Signal Interface	Analog quantity: 4 to 20 mA two-wire system; vortex frequency/pulse three-wire system 0～5Khz pulse; instantaneous/accumulated flow; current output; 0～10Khz pulse; Digital interface: HART@4~20mA two-wire system; Modbus@RS-485 four-wire system
Power Supply	13.5 ~ 42VDC
Medium Temperature	-40～150°C
Process Pressure	1.6MPa (universal); 2.5MPa (optional)
Process Temperature	-40～+85°C
Environment Humidity	5 to 100% RH
Process Connection	DN100 flange connection type
Protection Level	IEC IP65/IP67
Explosion-proof Grade	ExdIICT3/FM/CSA/ATEX
Material	Body: 304 or 316L Vortex sensor: 316L Converter housing: aluminum

Details

IP65 42VDC DN300mm Steam Insertion Vortex Flow Meter
