Ultrasonic Flaw Detector
Metal ultrasonic flaw detector is a portable industrial non-destructive flaw detection instrument, which can quickly, conveniently, damage-free and accurately detect and locate various defects in the workpiece (including longitudinal cracks, transverse cracks, looseness, pores, slag inclusions, etc.) , Evaluation and diagnosis. It can be used both in the laboratory and on the engineering site.
Instrument application
Widely used in boilers, pressure vessels, aerospace, aviation, electric power, petroleum, chemical, offshore oil, pipelines, military industry, shipbuilding, automobiles, machinery manufacturing, metallurgy, metal processing industry, steel structure, railway transportation, nuclear power, universities, etc. industry.
Instrument principle
When the ultrasonic wave propagates in the material to be tested, the acoustic properties of the material and the change of the internal organization have a certain influence on the propagation of the ultrasonic wave. The technology of understanding the material performance and structural changes through the detection of the degree and condition of the ultrasonic wave is called ultrasonic testing. Ultrasonic testing methods usually include penetration method, pulse reflection method, tandem method and so on.
Technical Parameters
| Scan range | 0~6000mm |
| Work flat rate | 0.4MHz~ 20MHz |
| Vertical linearity error | ≤3% |
| Horizontal linearity error | ≤0.1%. |
| Gain | 110dB |
| Sensitivity margin | > 62dB (depth 200mmφ2 flat hole) |
| Resolution | > 40dB (5N20) |
| Dynamic Range | ≥32dB |
| Noise level | <<8% |
| Hard dish frequency | 320MHz |
| Repetitive emission frequency | 100~ 1000HZ |
| Sound speed range | 100~15000 (m/s) |
| Way of working | Single crystal straight probe flaw detection, single crystal oblique probe flaw detection, double crystal flaw detection, penetration flaw detection |
| Digital suppression | (0~80)% does not affect linearity and gain |
| operating hours | More than 8 hours of continuous work (lithium battery) |
| Ambient temperature | -10°~50° |
| Relative humidity | (20~95) %RH |
| Dimensions | 238X 155X46 (mm) |
| Weight | 1.0KG |
Features
1. Measurement display mode: A-type display mode
2. The buzzer can be set during the operation
3. With linear suppression function, suppression is 80% of the screen height
4. With freezing and thawing functions of waveform and flaw detection parameters
5.AVG curve is automatically generated, two types of defects can be customized
6. Probe automatic calibration function, with peak memory function, support wireless communication
7. The position and width of the gate can be set arbitrarily on the screen, and the incoming wave alarm can be set
8. It has two display modes of angle and K value, and has the playback function of stored graphics
9. With 500 independent flaw detection channels, each channel is set separately-group flaw detection parameters
10. DAC curve is automatically generated, 10 points can be recorded, four additional adjustable offset curves
11. You can switch between single crystal probe, dual crystal probe, and two flaw detection modes at will
12. With storage function, it can store 100 A-scan graphs, parameters and DAC curves
13. With delete function, delete the specified content (indicated by the storage group number) from the storage area
14. With real-time power status indication function, with sound path measurement, echo frequency analysis function
15. Able to communicate with PC, can upload measurement data and system setting parameters to PC
16.For further processing (such as generating flaw detection report, printing, etc.)
Products real shot

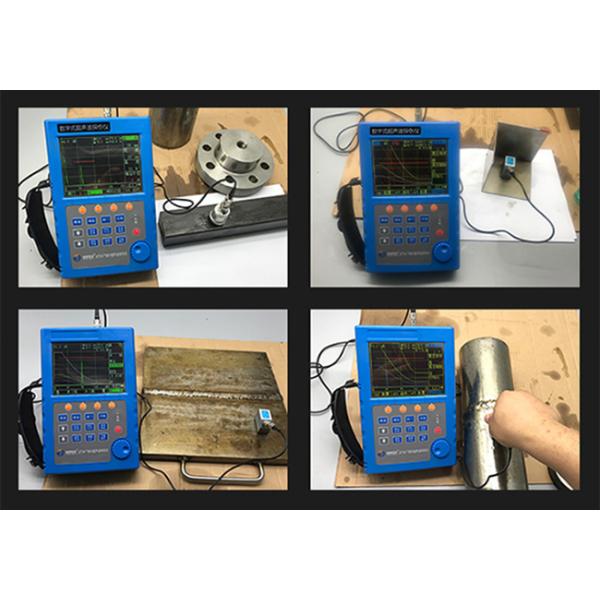

Convenient, damage-free and accurate measurement of various defects inside the workpiece
Mode of transport
